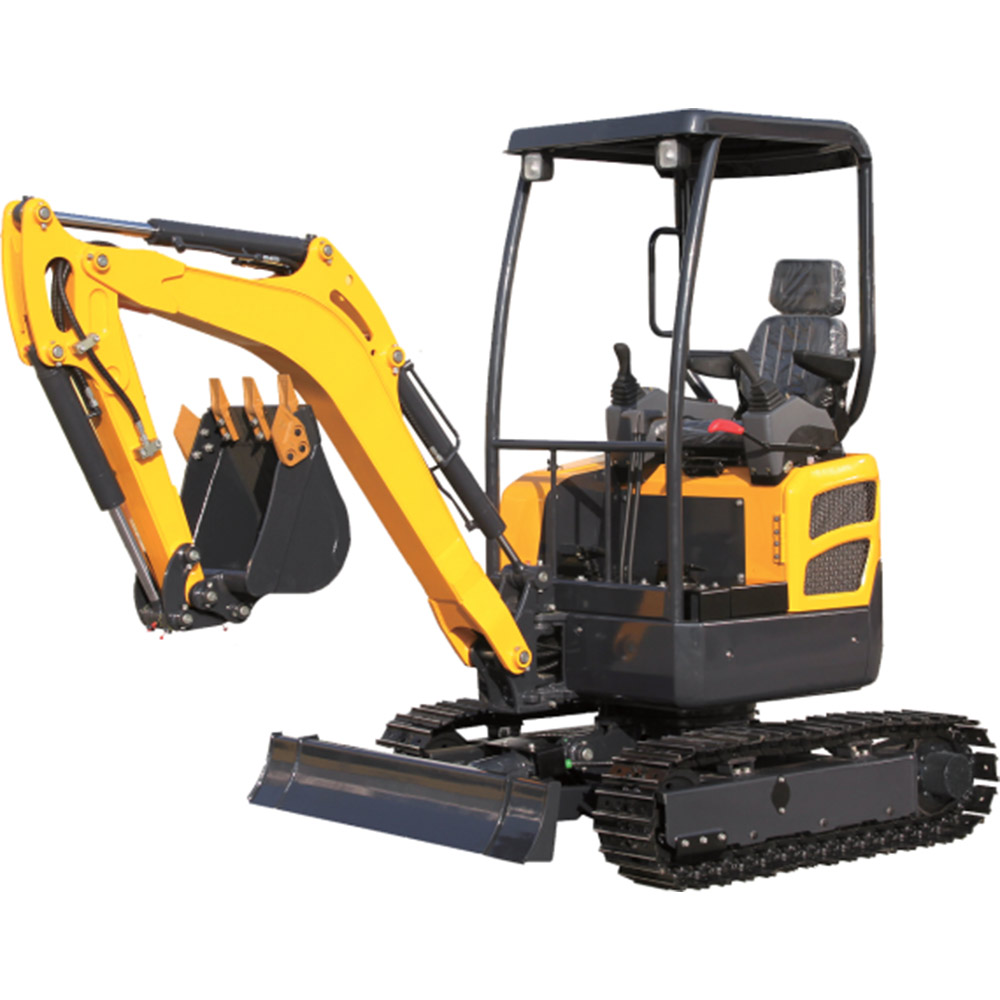

LX-20 Mini Excavator 2.0T
Multi function such as digging
CE certified for narrow space manpower saved
Hydraulic with EPA certificate
"1. Japan Kubota engine, 14.1KW, Euro V standard or EPA
2.The track is retractable.
3. Hydraulic pilot joystick operating system.
4. Eaton swing motor.
5. Eaton drive motor.
6. Bucket capacity: 0.07m ³
7. Open the cabin with ceiling.
8. Rubber track: 230mm
9. High quality pipeline system.
10. Domestic famous brand valves.
11. Domestic famous brand pump."
|
Key Parameters |
|
|
Operating Weight |
2000KG |
|
Standard bucket capacity |
0.07m³ |
|
Climbing ability |
35° |
|
Maximum Bucket digging force |
18KN |
|
Maximum Arm digging force |
11KN |
|
Hydraulic system press |
21.50Mpa |
|
Engine |
|
|
Emission Standard |
Europ 5 /EPA |
|
Brand |
Kubota D1105 |
|
|
14.2kw, 20HP, 2000rpm |
|
Cylinder |
3 |
|
Size |
|
|
General size |
3555x1300x2290mm |
|
Track distance |
760mm |
|
General Track length |
1230mm |
|
Mini ground clearance |
150mm |
|
Mini tail swing radius |
650mm |
|
Crawler |
|
|
Travel Speed |
4.0km/h |
|
Track width |
230mm |
|
Track number for steel crawler |
38pcs |
|
up supportin wheel |
1 |
|
bottom supporting wheel |
3 |
|
Operating range |
|
|
Maximum digging height |
3700mm |
|
Vertical tilting height |
2440mm |
|
Maximum digging depth |
2400mm |
|
Maximum digging vertical depth |
2025mm |
|
Maximum digging radius |
4040mm |
|
Minimum revolution redius |
1610mm |
|
Maximum height of scraper knife |
240mm |
|
Maximum depth of scraper knife |
270mm |
|
Arm swing angle , Left side |
75° |
|
Arm swing angle , Right side |
45° |
