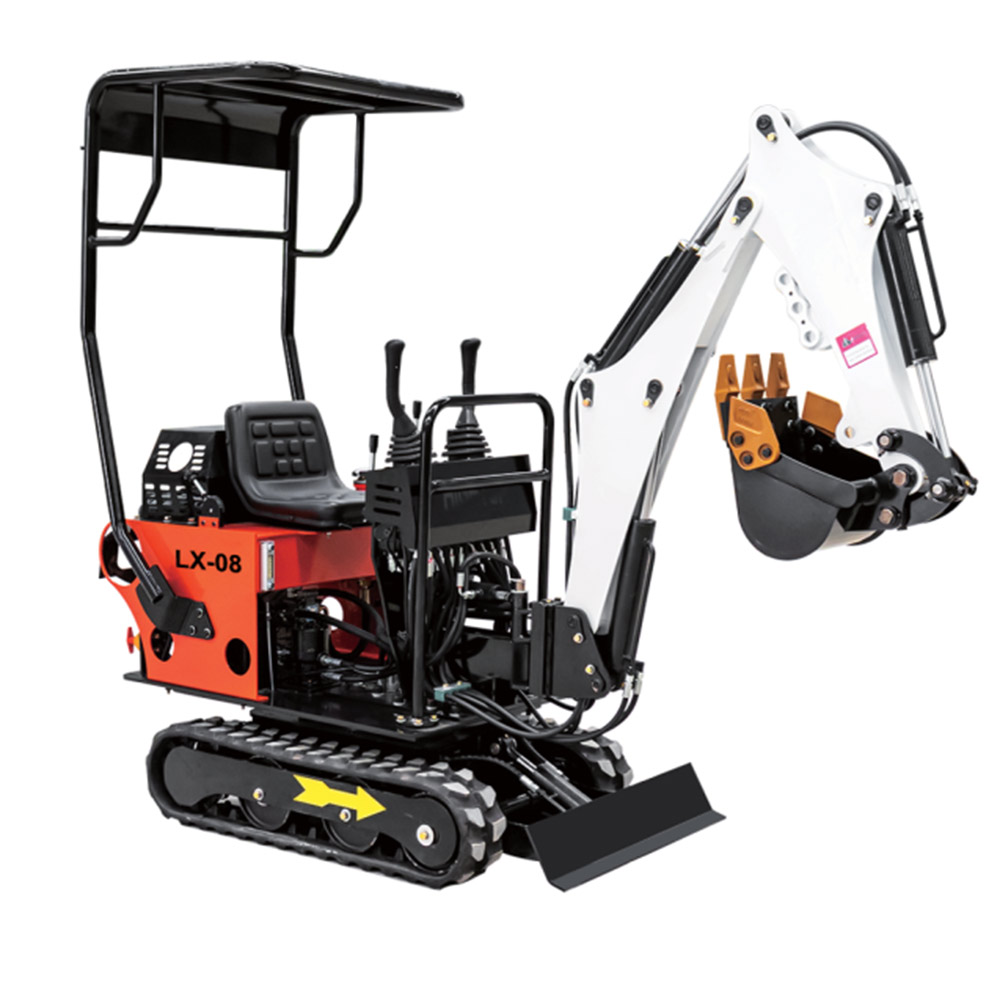

LX-08 Mini Excavator
Multi function such as digging
CE certified for narrow space manpower saved
Hydraulic with EPA certificate
|
Key Parameters |
|
|
Rated Power |
7KW |
|
Engine |
KOOP 192F |
|
Optional Engine |
Briggs & Stratton Engine Gasoline |
|
Standard bucket capacity |
0.025m³ |
|
Standard bucket Width |
300mm |
|
Operating Weight |
800KG |
|
Pump |
Single gear pump |
|
Work press |
14MPa |
|
Rotary Speed |
12rpm |
|
Travel Speed |
2.2km/h |
|
Climbing ability |
30° |
|
Ground pressure |
19Kpa |
|
Maximum digging force |
7.5KN |
|
Size |
|
|
General Width |
720-780mm |
|
General Height |
1300mm |
|
General length |
2430mm |
|
Mini ground clearance |
80mm |
|
General Track length |
1140mm |
|
Track width |
150mm |
|
Operating Range |
|
|
Maximum digging radius |
2450mm |
|
Maximum digging depth |
1200mm |
|
Maximum digging height |
2350mm |
|
Maximum unlaoding height |
1600mm |
|
Minimum revolution redius |
1100mm |
|
Maximum height of bulldozer |
120mm |
|
Maximum digging depth of bulldozer |
200mm |
|
Engine |
|
|
Engine Model |
KOOP 192F |
|
Power type |
4 stroke 1 cylinder ari cooled vertical |
|
combustion system |
Direct injection |
|
Rated speed |
3000/3600rpm |
|
Oil tank |
5.5L |
|
Oil cost |
280g/kwh |
|
Net weight |
55kg |
|
Container loading: 8sets in 20GP container; 14 sets in 40GP container. |
|
