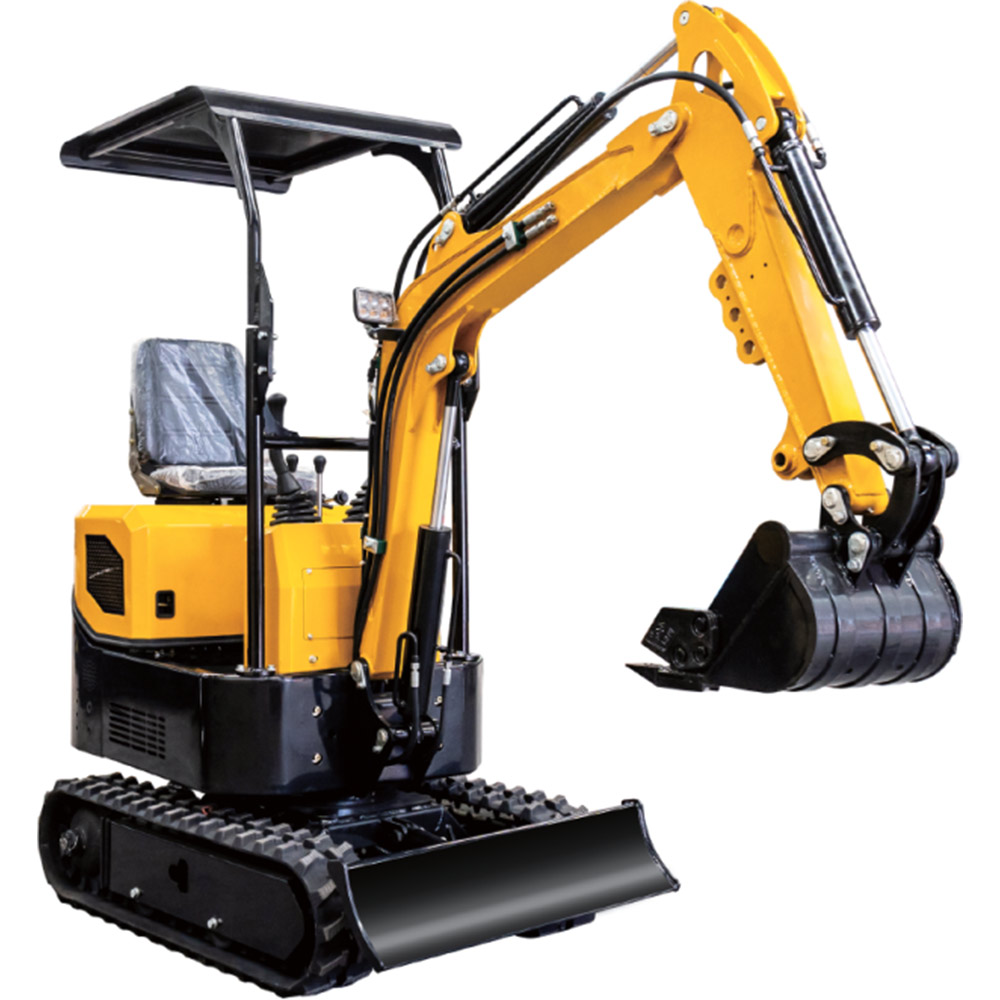

LX-10C Mini Excavator
Multi function such as digging
CE certified for narrow space manpower saved
Hydraulic with EPA certificate
|
Key Parameters |
|
|
Operating Weight |
1000KG |
|
Standard bucket capacity |
0.025m³/120kg |
|
Standard bucket Width |
380mm |
|

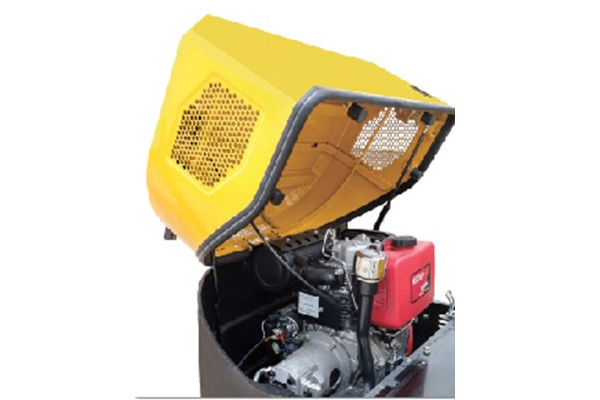

Engine |
KOOP 192F |
|
Optional Engine |
Briggs & Stratton Engine, Yangma Engine |
|
Cylinder |
Single air cooled |
|
Rated Power |
7KW/3000r/min |
|
Main pump |
G5-6 |
|
Emission |
6.8ml/r |
|
Swing motor |
Sanyo, Japan |
|
Travel motor |
Sanyo, Japan |
|
Travel speed |
1.5km/h |
|
Size |
|
|
General size |
2775x930x2219mm |
|
Track distance |
910mm |
|
General Track length |
1230mm |
|
Mini ground clearance |
380mm |
|
Mini tail swing radius |
784mm |
|
Chassis width |
896mm |
|
Track width |
180mm |
|
Track ground clearance |
132mm |
|
Track Height |
320mm |
|
Operating range |
|
|
Maximum digging depth |
1650mm |
|
Vertical digging depth |
1375mm |
|
Maximum digging height |
2610mm |
|
Maximum unlaoding height |
1850mm |
|
Maximum digging radius |
2850mm |
|
Minimum revolution redius |
1330mm |
|
Maximum height of bulldozer |
345mm |
|
Maximum digging depth of bulldozer |
255mm |
