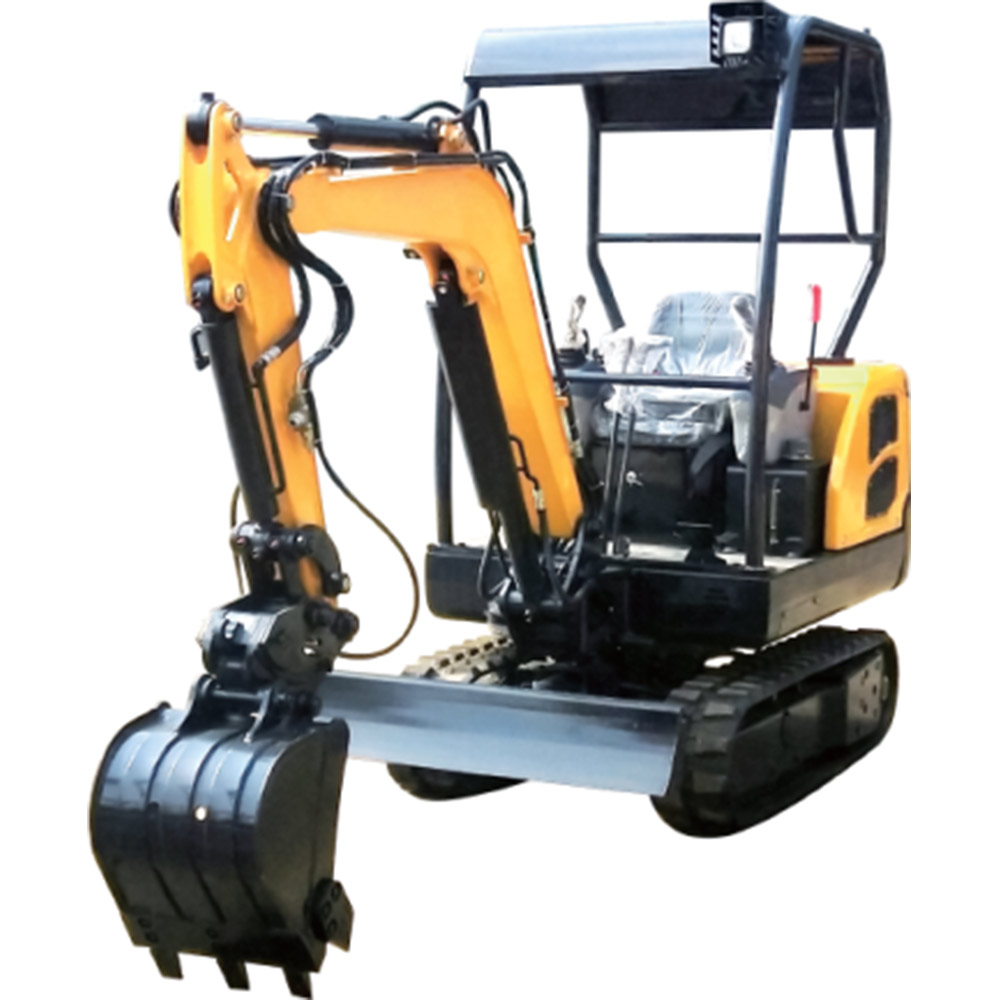

LX-18 Mini Excavator 1.8T
Multi function such as digging
CE certified for narrow space manpower saved
Hydraulic with EPA certificate
|
Key Parameters |
|
|
Operating Weight |
1800KG |
|
Standard bucket capacity |
0.06m³ |
|
Climbing ability |
35° |
|
Maximum Bucket digging force |
14KN |
|
Maximum Arm digging force |
10KN |
|
Hydraulic system press |
18Mpa |
|
Engine |
|
|
Emission Standard |
Europ 5 /EPA |
|
Brand |
Kubota D1105 14.2kw |
|
|
Laidong 3te25 18.4kw for National Ⅲ |
|
Cylinder |
3 |
|
Size |
|
|
General size |
3865x1050x2270mm |
|
Track distance |
820mm |
|
General Track length |
1230mm |
|
Mini ground clearance |
210mm |
|
Mini tail swing radius |
1125mm |
|
Crawler |
|
|
Travel Speed |
3.5km/h |
|
Track width |
230mm |
|
Track number for steel crawler |
38pcs |
|
up /bottom supporting wheel |
0/4 |
|
Operating range |
|
|
Maximum digging height |
3365mm |
|
Vertical tilting height |
2385mm |
|
Maximum digging depth |
2050mm |
|
Maximum digging vertical depth |
1725mm |
|
Maximum digging radius |
3860mm |
|
Minimum revolution redius |
1720mm |
|
Maximum height of scraper knife |
230mm |
|
Maximum depth of scraper knife |
275mm |
|
Arm swing angle , Left side |
75° |
|
Arm swing angle , Right side |
45° |
