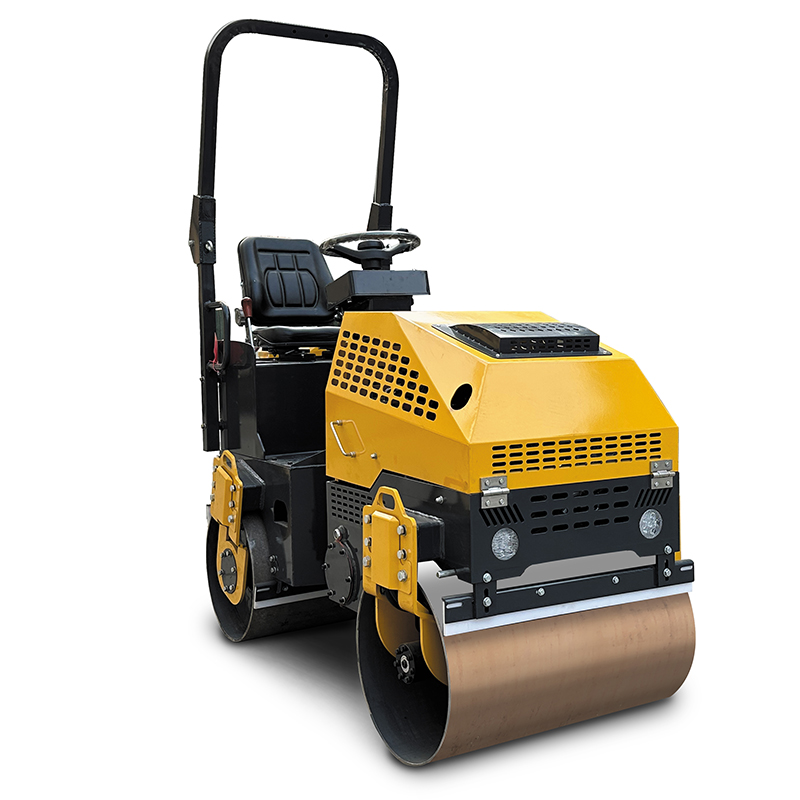

LX-1 T Mechanical Road Roller
The machine is flexible and convenient and is suitable for road earthwork compaction, asphalt concrete, sand, and gravel mixture, and cement-stabilized soil paving and compaction, as well as trench backfilling and construction project backfilling compaction. It is an ideal compaction equipment.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Parameters
| STATIC LINE LOAD | 56/77N/cm | SPEED | 0-8km/h |
| NOMINAL AMPLITUDE | 0.5mm | TURNING RADIUS | 3350mm |
| VIBRATION FREQUENCY | 65Hz | THEORETICAL CLIMBING ABILITY | 30° |
| VIOLENT FORCE | 30KN | DRUM WHEEL WIDTH | 800mm |
| MODEL | CF186 | STEEL WHEEL DIAMETER | 500mm |
| TYPE | Diesel engine air-cooled four-stroke single-cylinder | WHEELBASE | 1276mm |
| POWER | 14hp/3600rpm | TOTAL LENGTH | 1865mm |
| FUEL TANK CAPACITY | 5.5L | TOTAL WIDTH | 900mm |
| LUBRICATING OIL QUANTITY | 1.1L | TOTAL HEIGHT | 2080mm |
| WATER TANK | 36L | WORK | Hydraulic drive, Hydraulic steering |
