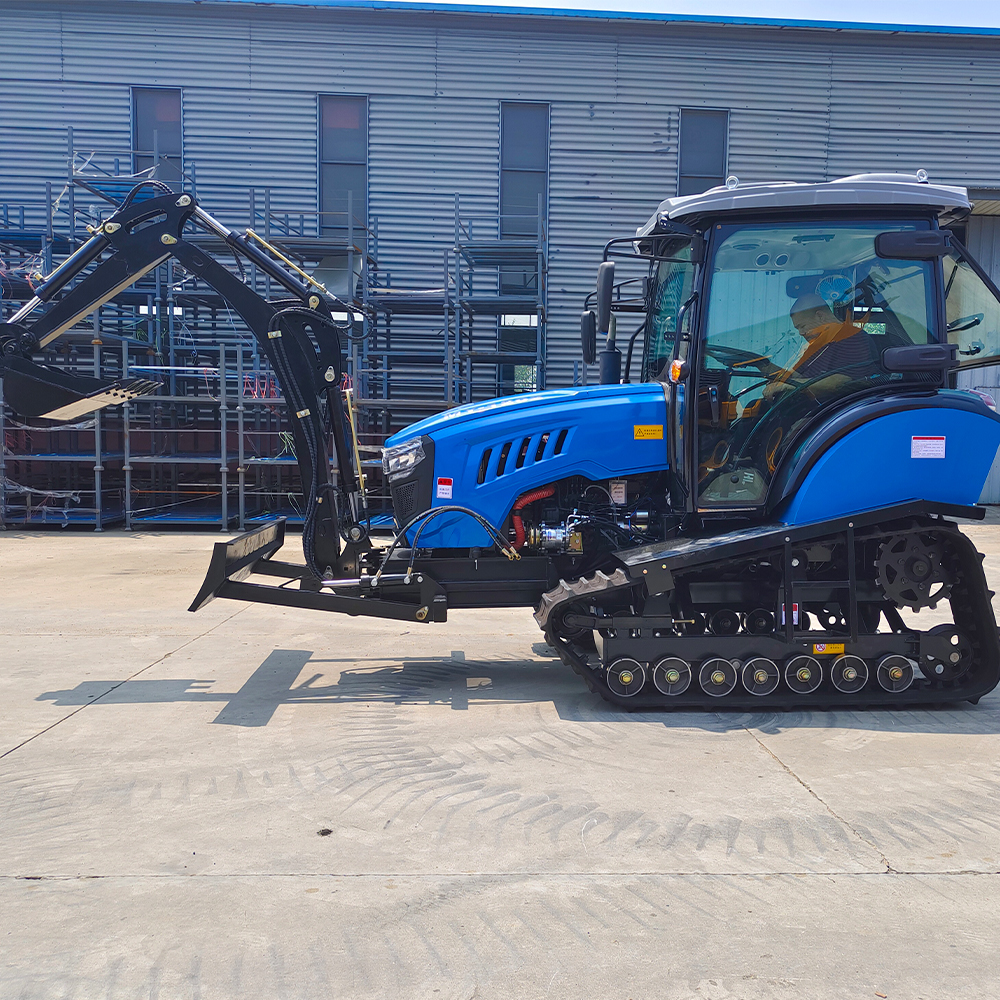

LX-120HP/130HP Crawler Tractor
Multi function,for paddy land & dry land
If you want to do many works by one tractor, Pls contact us!
1 crawler tractor could do cultivating, harvesting, trenching, filling, spraying and others.
Because of low gravity & bigger adhesion coefficient, crawler tractor has good resistance to the slope stability of the tilting and falling. Meanwhile, it requires a small turning radius. Its gradeability is strong so all terrain is taken. It could cross furrow and climb mountainous and hilly areas. Especially in hilly areas, the arable land slope is large and the soil resistance is uneven, resulting in the poor stability, insecurity, uneven depth of operation and poor quality of operation of wheeled tractor on the slope. Farmers choose crawler tractor to plow, cultivate land, which will significantly improve the quality of operation
Advantages:
1. Multi functions: 9 in 1 tractor. it could do many works such as plowing, cultivating, trenching, harvesting, digging and others.
2. Free walk fast. All terrain taken. Protected by crawlers. Stable cross furrow. Climb hills. Free walk in water land.
3. Anti skid . Fast travel in paddy land. No stuck in water muddy land.
4. Economics. One tactors could serve as many machines such as excavator, loader, digger, sprayer and others.
6. Tractor with crawler will not harm or hurt plants as crawlers are wide than tyers.
7. Tools or accessories use for wheel tractors could match crawler tractors as crawler tractors are open to these accessories.
| Engine | Laidong 4100/Weomei4102 Turbo, Diesel 4 Cylinders, watercooled |
Net weight | 2000kg |
| General Size | 2900x19000x1900mm | Bucket size | 600x380x280mm |
| Crawler width | 300/400/450mm | Cultivator Wide | 2.0-2.5m |
| chassis height | 50cm | Travel speed | ≥30Km/h |
| Gears | 10 Gears: 4 F+1 R , Hight & Low speed | Work efficiency | 6-8mu/h or 4000-4500m² |
| Lifting height | 2.80-3.30m | Diesel cost | 1-3L/h |
| Boom size | 3600x1600x2700mm | Gear box | Full gears, mechanical transmission |
| Connection | 3 point hanghing, forced acsent forced decsent high& low speed 540/720 |
Max Digging depth | 2.0-2.5m |
| Application | Dry land, Paddy land, hill land, Cross furrow | Function | multi function |
50HP 60HP 75HP 80 100HP
|
No |
Item |
Sizes mm |
No |
Item |
Size mm |
|
1 |
Rotary cultivator 1.8m |
1800x800x900 |
12 |
Fertilizer applicator |
1300x12100x1300 |
|
2 |
Rotary cultivator 1.6m |
1600x800x900 |
13 |
Wheat planter 7 lines |
1300x10100x1100 |
|
3 |
Rotary cultivator 1.5m |
1500x800x900 |
14 |
Corn planter 3 lines |
1300x10100x1100 |
|
4 |
Rotary cultivator 1.3m |
1300x800x900 |
15 |
Dosing machine |
1300x1300x1300 |
|
5 |
Dig tree pit tool |
1000x1000x1000 |
16 |
350 catepillar |
4320x350x100 |
|
6 |
Bury rattan tool |
1300x1100x800 |
17 |
Canopy |
1000x900x1050 |
|
7 |
Single side ditcher |
1100x1300x800 |
18 |
Hydraulic 3 furrow plough machine |
1600x1200x1200 |
|
8 |
Middle position ditcher |
1100x1300x800 |
19 |
Hydraulic 2 furrow plough machine |
1200x1000x1200 |
|
9 |
Straw returning tool 1.5m |
1500x1000x700 |
20 |
3 Furrow plough machine |
1300x1200x1000 |
|
10 |
Straw returning tool 1.3m |
1300x1000x700 |
21 |
2 Furrow plugh machine |
1000x1000x800 |
|
11 |
Dozer blade |
1300x1000x450 |
22 |
Loading Shovel |
2500x1300x600 |
Note:
1) All these accessories for wheel tractors could be equipped to crawler tractors.
2) Small size crawler tractors such as 25hp and 35hp are with 4-5 accessories such as cultivator, mower, bulldozer, trencher, filling tools.
3) Crawlers tractors 25hp, 35hp 50ho, 60hp 75hp are divided into 2 version, paddy land and dry land, crawler tractors over 80HP are right for paddy land and dry land.
4) The gears for 25hp and 35hp tractors is 8 gears, for 50hp -130hp, gear number is 10.
5) All crawler tractors are with double clutch. so gear box is protected and it is easy to put in gear.
